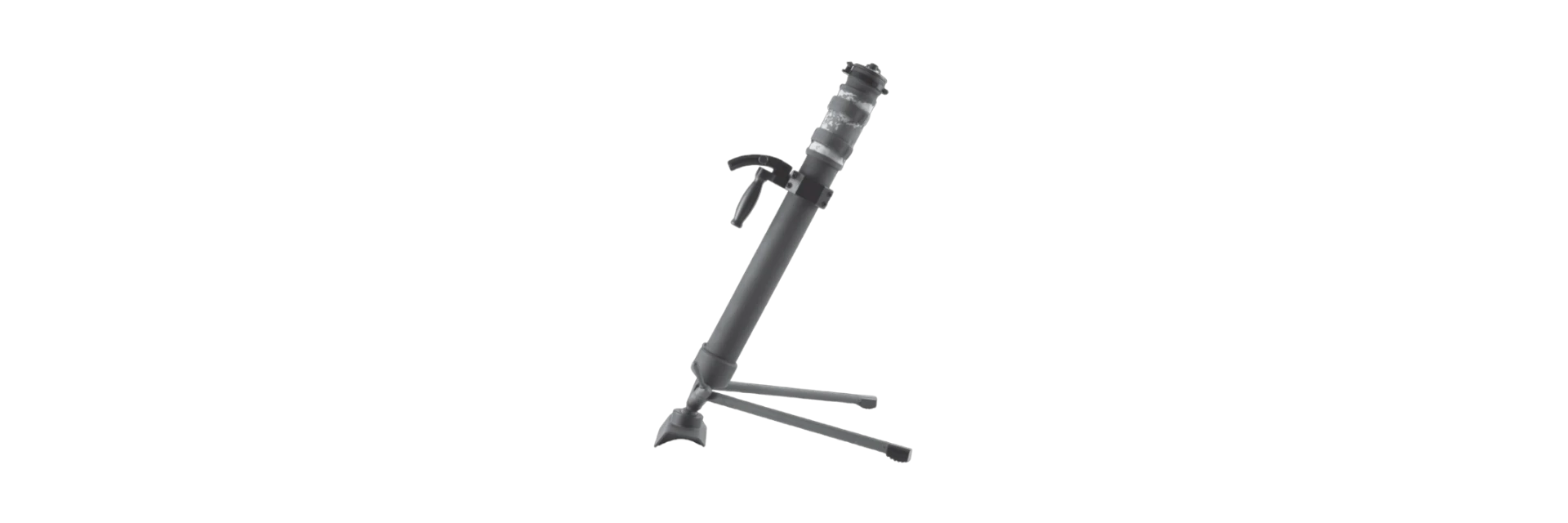

The KTH1 Commando Mortar, which provides close range mortar support in counter-terrorism, conventional and joint operations of our commando units, enables the soldier to put pressure on the target area by making fast and effective shots thanks to its lightness and easy installation. With the help of its practical sight ruler, it allows quick shooting at targets between 100 meters and 1800 meters. Unlike its counterparts, it provides a more accurate aiming of the target direction day and night, with the sight-bead attached to the muzzle of the barrell.

Firing Mode	Automatic / Single Mode
Firing Speed	8–10 Ammo / min
Maximum Operating Pressure	250 Bar
Maximum Range	1800 m *
Overall Length	80 cm
Barrel Length	65 cm
Barrel Inner Diameter	60.70 mm
Barrel Outer Diameter	66 mm
Weight	8.000 gram
Barrel Service Life	4.500 Rounds **
Direction Sight	Helps the crew aim at targets during day or night.
Dust Cover	Protects the muzzle from dust and rain while in position.
Support Lags	Keeps the mortar in ready-to-shoot position and supports the crew.
Sighting Unit	Helps the crew with quick and easy aiming and firing.
Carrying Handle	Assists the crew in carrying and stabilizing during firing.
Adjustable Breech Cap	Allows barrel angle adjustment without moving the base.
Manganese Phosphate Coating	Protects against corrosion and rust.
Technical Specifications	DAZ TECH MÜHENDİSLİK SAN. TİC. A.Ş. INNOVATION & TECHNOLOGY Ostim OSB Mah. 100. Yıl Blv. No:55 C İç Kapı No:14 Yenimahalle / ANKARA +90 312 335 5555 info@daz-tech.com
