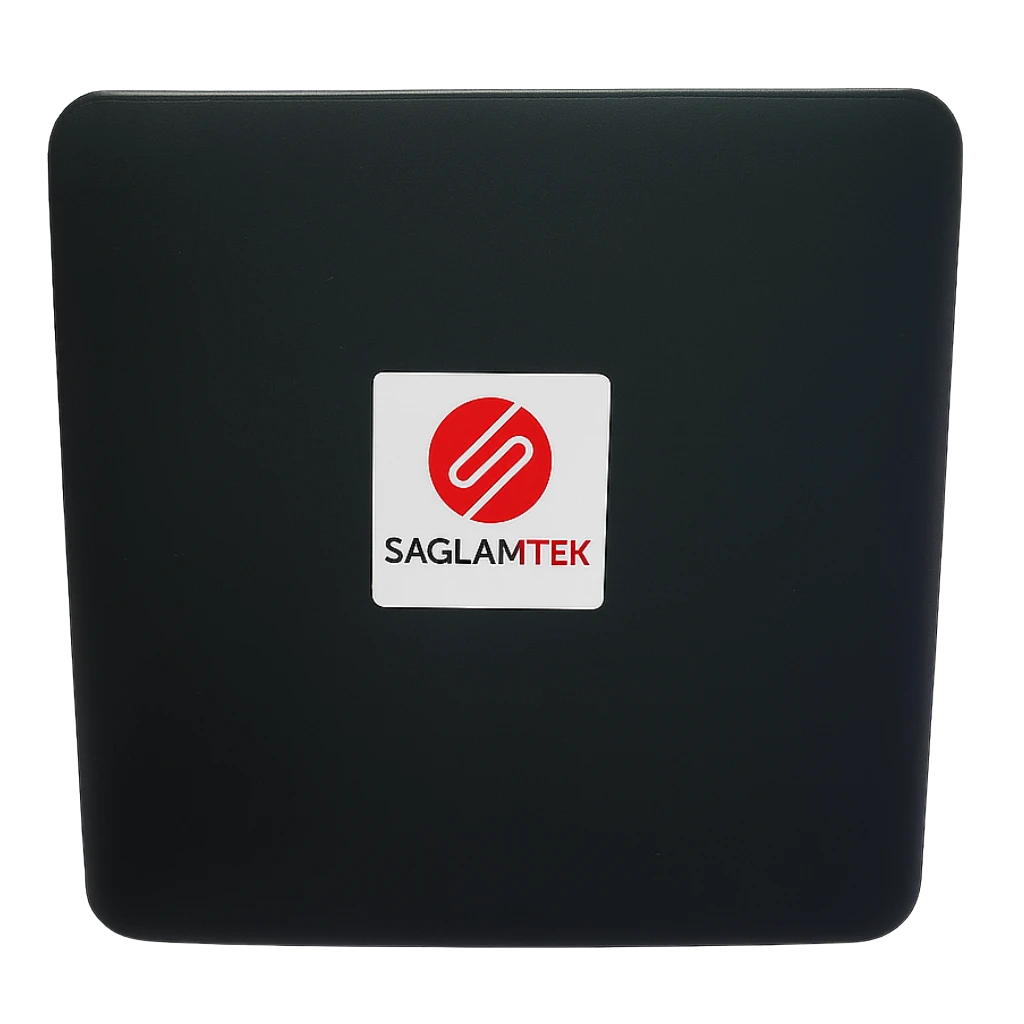

BORAJ-SLIM4 DUAL BAND
Highlights
- » 4-array antenna system
- » Improves the safety of satellite navigation in various platforms
- » Prevents GNSS jamming caused by Jammers
- » With anti-spoofing feature
- » When used with SAJ, BORAJ provides higher suppression of unwanted signals
-
Effective Bands L1, B1, E1 + L2 or L5 Suppression Rate 1-Source 90 dB Suppression Rate 3-Source 80 dB Effective Angles Phi Angle from 0 º to 360º
Theta Angle from -90º to +90ºSupply Voltage 12-15VDC Power Consumption 10W Operating Temperature -40°C - +85°C Storage Temperature -45°C - +85°C Humidity 95% Waterproof IP67 Dimensions 100mm x 100mm x 24mm Weight 265 g Interface Micro-D (customizable) Protocol NEMA0183 Protocol Interface TTL Pixhawk compatible
