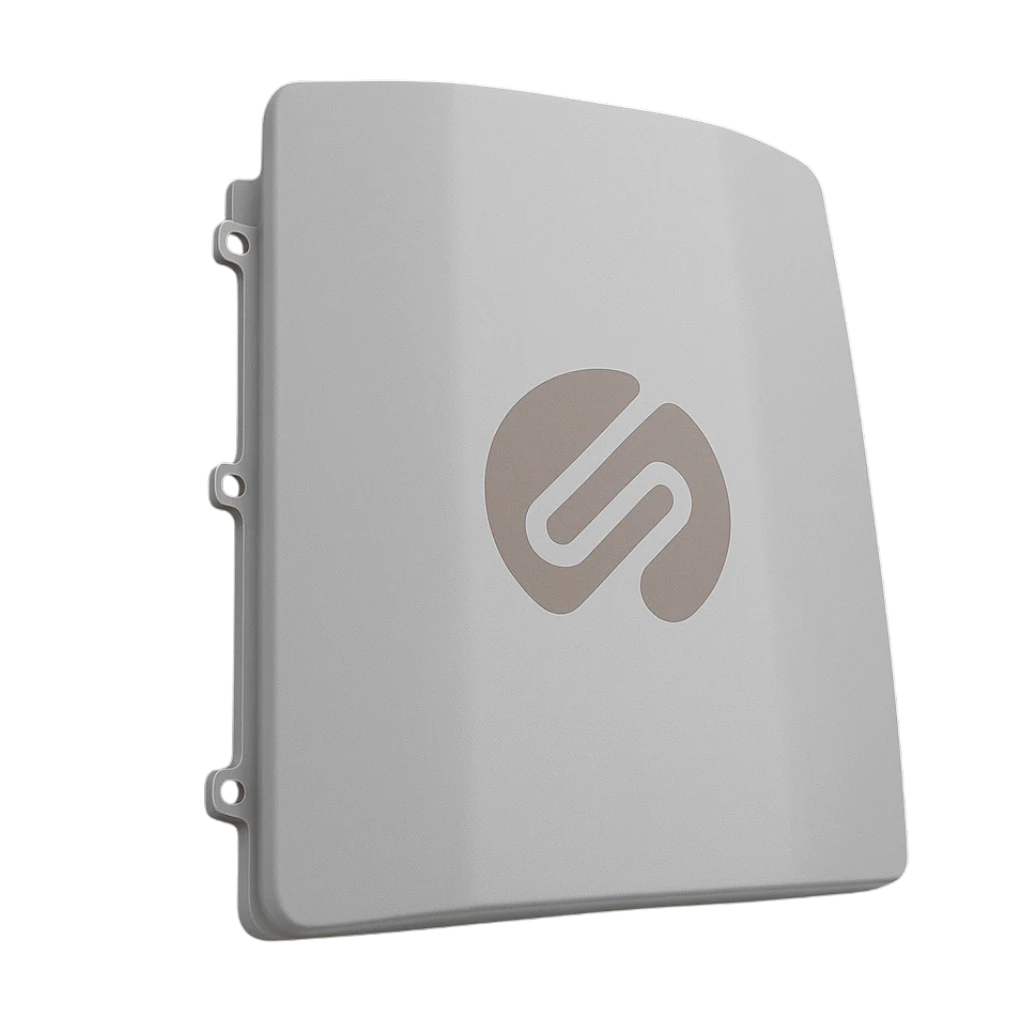

BORAJ V8 DUAL BAND


Highlights
  • » 8-array antenna system
  • » Improves the safety of satellite navigation in various platforms
  • » Prevents GNSS jamming caused by Jammers
  • » With anti-spoofing feature
  • » Can be further developed via processing methods
  • » When used with SAJ, BORAJ provides up to 100+ dB suppression of unwanted signals


Download Catalog

Effective Bands B1, L1, L2 or L5
Suppression Rate (1–7 Source) 90 dB – 80 dB
Effective Angles Phi Angle: 0° to 360°
Theta Angle: -90° to +90°
Supply Voltage 12–15 VDC
Power Consumption 20W
Operating Temperature -40°C to +85°C
Storage Temperature -45°C to +85°C
Humidity / Waterproof 95% / IP67
Dimensions / Weight 150mm × 150mm × 24mm / <590 g
Interface Micro-D (customizable)
Protocol NMEA0183 Protocol
Pixhawk Compatible Yes
