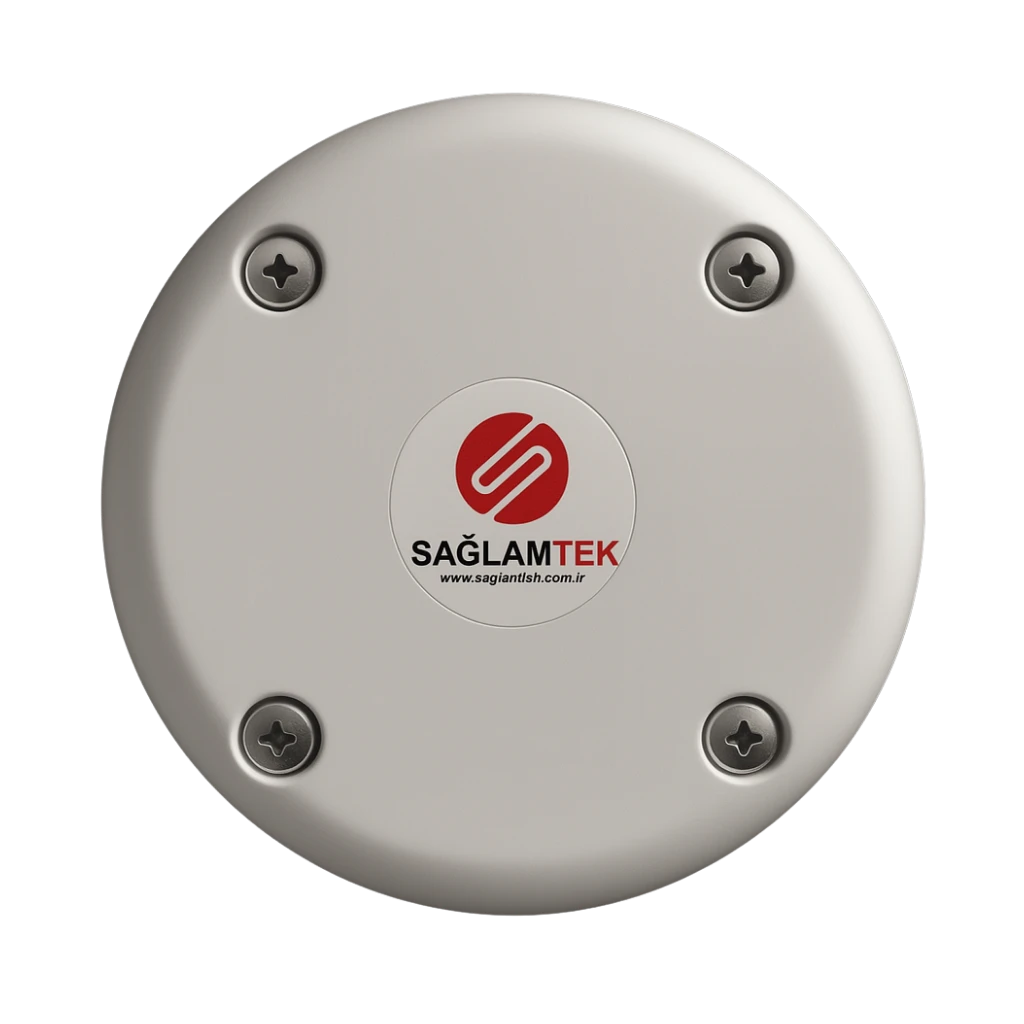

GNSS Active Antenna 2

Download Catalog

Antenna Specifications
Electrical Performance Parameters
Frequency Range	1565–1607 MHz / 1217–1260 MHz
Polarization	Right Hand Circular Polarized (RHCP)
Axial Ratio	< 3 at zenith
VSWR	2.0 : 1 max.
Antenna Pattern	360º (horizontal), 90º (vertical)
Antenna Gain / LNA Gain	3 dBic / 40–45 dB
Supply Voltage / Current	3–28 VDC / 113 mA
Impedance	50 Ω
Noise Figure	< 1.5 dB
Mechanical Properties
Weight	< 290 g
Operating Temperature	-55°C to +85°C
Storage Temperature	-55°C to +85°C
Dimensions	Ø89 × 25 mm
Storage Humidity	95%
Connector Type	TNC-F
Waterproof	IP67
