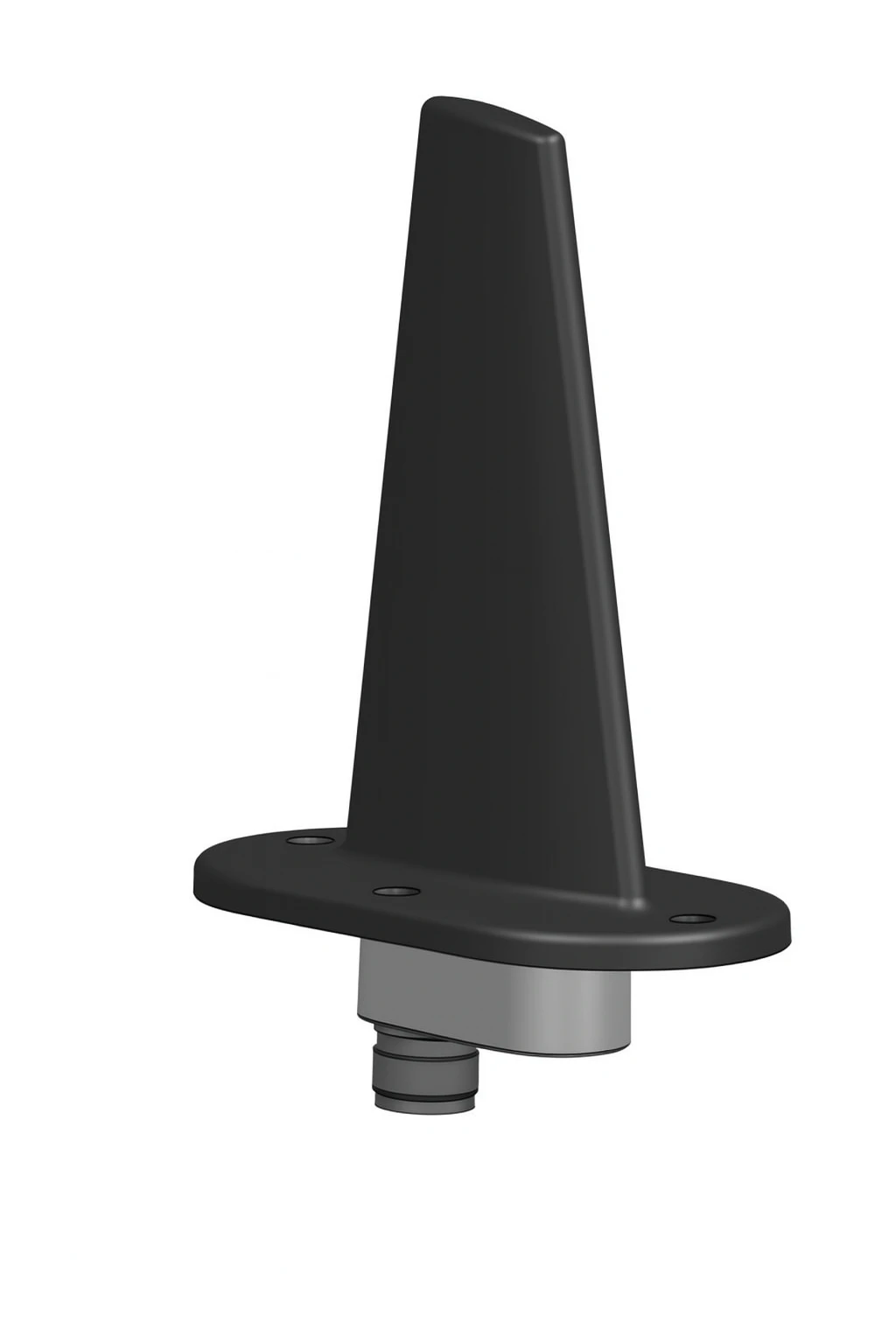

IFF ANTENNA

Highlights
  • » Reliable, secure friend or foe identification
  • » Omni-directivity over full operating range
  • » Rugged shape
  • » Lightweight, compact profile


Download Catalog

Antenna Specifications
Electrical
Frequency Band 960 – 1215 MHz
Bandwidth 960–1000 MHz / 1000–1100 MHz / 1100–1215 MHz
VSWR ≤ 1.8:1 / ≤ 1.4:1 / ≤ 1.8:1
Impedance 15 Ω
Polarization Vertical
Gain 3 dBi
Power Rating 1000 W Peak / 15 W Average
Radiation Pattern Omnidirectional
Physical
Dimensions 72.6 × 40.6 × 91 mm
Weight < 50 g
Color Matte Black
RF Connector TNC Female
Installation Four mounting holes
Environmental
Operating Temperature -63°C to +50°C (MIL-STD-810G compliant)
Storage Temperature -63°C to +70°C
Altitude 45,000 feet
Vibration General Vibration 514.6D-2
Shock Amplitude: 20 g, Duration: 11 ms
